Introduction to Josephson Junctions

  • Josephson junctions are weak links between two superconductors.
  • They are used to create superconducting qubits, SQUIDs, and other devices.

Josephson Relations - I

  • Current through a Josephson junction is given by $$I_s = I_c \sin(\delta)$$
  • Here, $I_c$ is the critical current and $\delta$ is the phase difference between the superconductors ($\phi_1 - \phi_2$).
Josephson Junction [BD Josephson Physics letters 1 (7), 251-253]

Josephson Relations - II

  • Voltage across a Josephson junction is given by $$V = \frac{\Phi_0}{2\pi} \frac{d\delta}{dt}$$
  • Here, $\Phi_0$ is the magnetic flux quantum. $$\Phi_0 = \frac{h}{2e} \approx 2.067\mathrm{x}10^{-15} Wb$$
Josephson Junction [BD Josephson Physics letters 1 (7), 251-253]

Josephson Junction in a Magnetic Field

  • When a magnetic field is applied, the phase difference $\delta$ changes.
  • In case of small junctions, the current magnetic field relation is given by $$I_{c}=I_{0}\left|\frac{\sin\left(\pi\frac{\Phi_{J}}{\Phi_{0}}\right)}{\pi\frac{\Phi_{J}}{\Phi_{0}}}\right|$$
  • Here, $\Phi_{J}=\mu_{0}HLd$ is the magnetic flux through the junction area.

Josephson Junction in a Magnetic Field

  • This is of the standard Fraunhofer pattern form.
  • $F(x)=I_{0}|\frac{\sin{\pi x}}{\pi x}|$
  • A signature of Josephson Junction

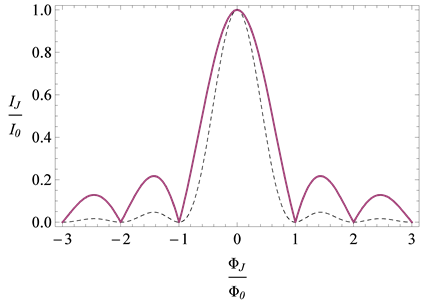

Fraunhofer patternExample plot of the JJ Fraunhofer pattern [ E. R. Caianiello et. al. Journal of Modern Physics Vol.06 No.05(2015) ]

Another Josephson Junction signature

  • Non linear relation between the current and the voltage across the junction.

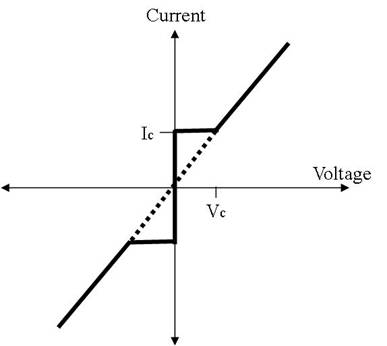

IV Characteristics PC: stackoverflow
Current voltage characteristics of a Josephson junction

Simulating a normal Josephson Junction

  • Resistively and capacitively shunted junction model (RCSJ).
  • $$ \frac{\Phi_0}{2\pi}C \ddot{\delta} + \frac{\Phi_0}{2\pi R} \dot{\delta} = I-I_c\sin{\delta}$$

    Rearranging, we get $$ \ddot{\delta}+\frac{1}{RC}\dot{\delta}=(\frac{2\pi}{C\Phi_{0}})(I-I_{c}\sin(\delta)) $$

RCSJ model

The RCSJ Model

    Rearranging, we get $$ \ddot{\delta}+\frac{1}{RC}\dot{\delta}=(\frac{2\pi}{C\Phi_{0}})(I-I_{c}\sin(\delta)) $$
  • dynamics of $\delta$ resembles a damped particle with
    • Effective mass $C$
    • Coefficient of friction $\frac{1}{R}$
    • Potential on the particle $-(\frac{2\pi}{C\Phi_{0}})(I\delta-I_{c}\delta\sin(\delta))$
RCSJ model

IV Characteristics

PC: stackoverflow

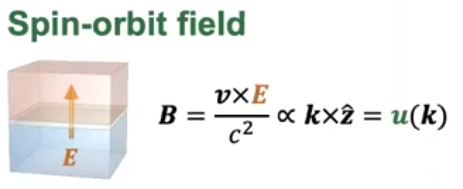

Rashba Edelstein Effect

  • Interface effect between Metal and Heavy Metal.
  • Generates a spin accumulation perpendicular to the charge current.
Rashba Edelstein Effect

[V.M. Edelstein, Solid State Communications,Volume 73,issue 3,1990]

Detection of Rashba-Edelstein Effect

  • Interface effect $\implies$ Direct detection is not easy

Reported sofar:

  • Detection via inverse Rashba-Edelstein effect [1]
  • Interaction of charge current with spin density at the interface via FMR [2]
[1 Sánchez, J. R. et al. Nat. Com. 4, 2944 (2013).] [2 Rojas-Sánchez, J.-C. et al. Phys. Rev. Lett. 116, 096602 (2016).]

Phase biasing of a Josephson junction using Rashba-Edelstein effect

  • superconducting electrode on a rashba interface.
  • moment from Rashba-Edelstein effect induces flux in the junction.
  • Detected via $I_cH$ and $VH$.
NISER
  • Part of Master's Thesis (2021)
  • Prof Kartik Senapati, Superconductivity Lab, NISER, India.
Rashba Edelstein Effect

Sample preparation

Instrument UV Mask Aligner

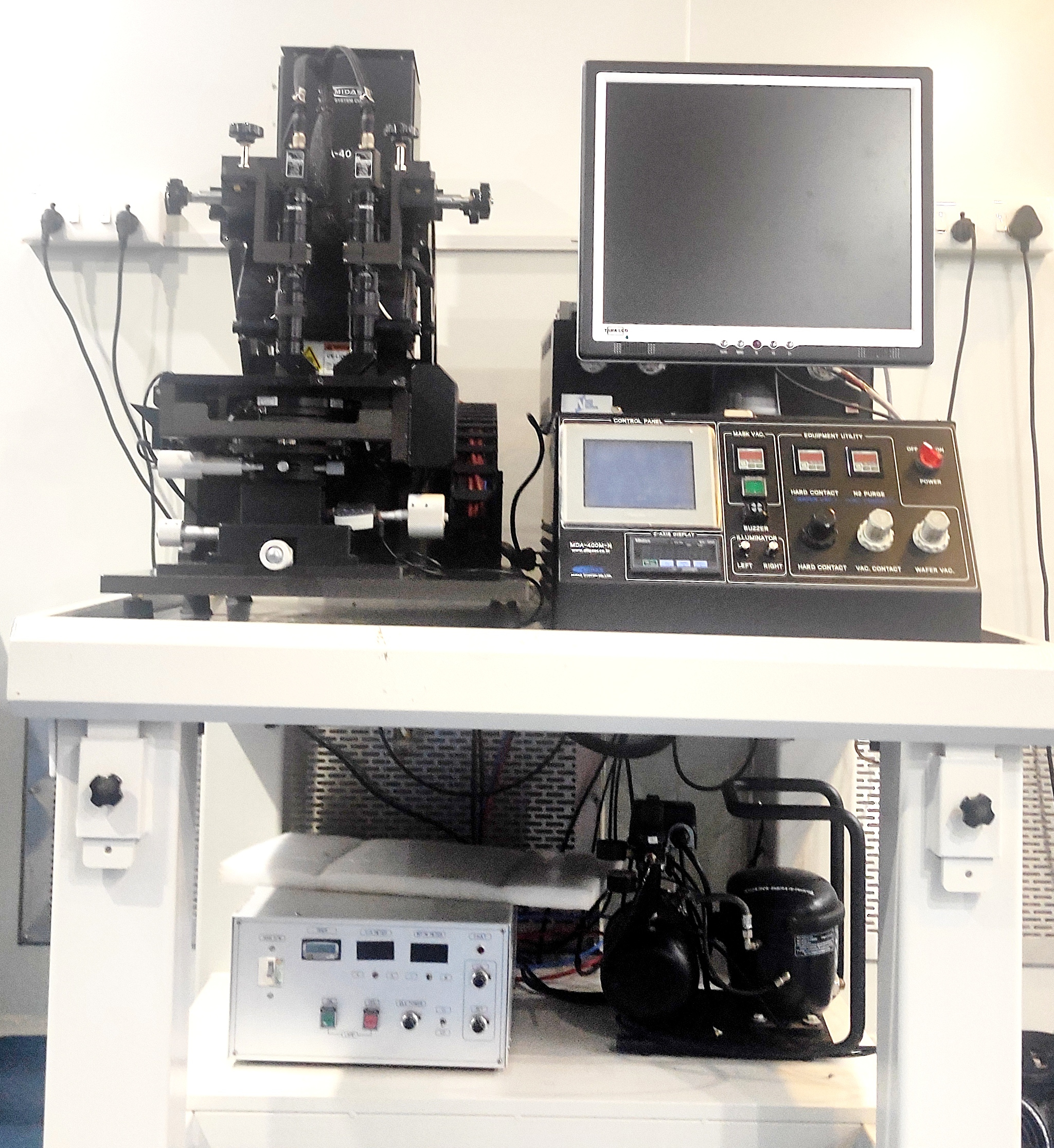

UV Mask Aligner

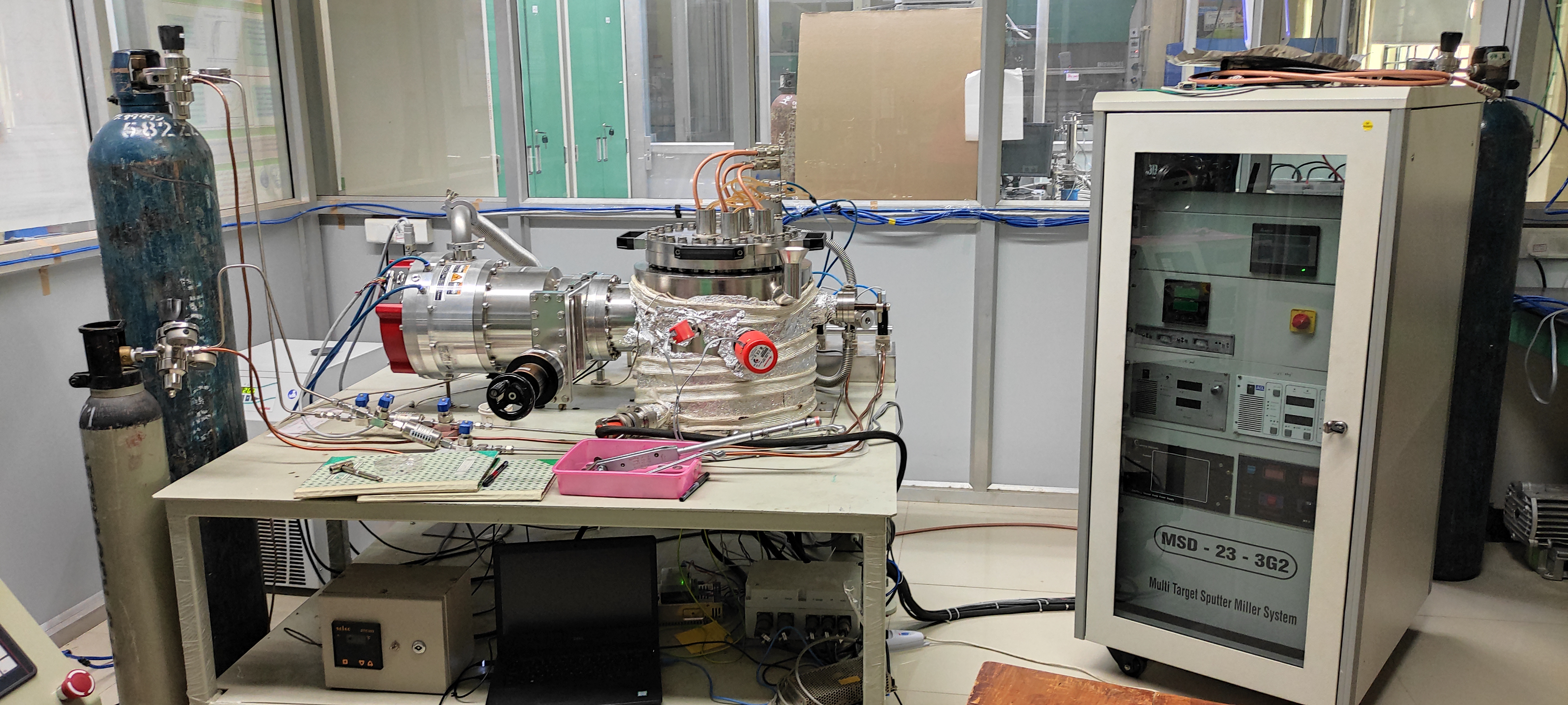

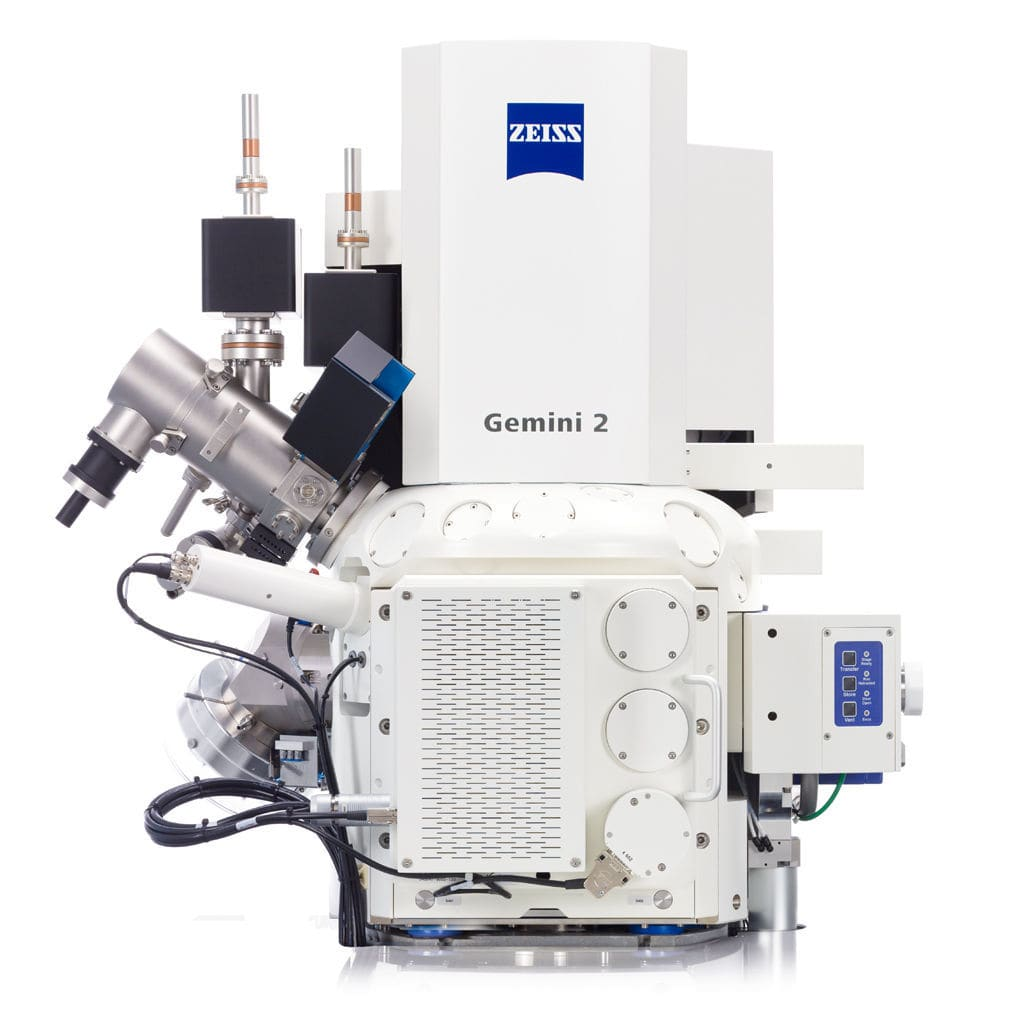

DC Magnetron sputteringDC Magnetron sputtering Ga - FIB + SEM (Crossbeam 340)Ga - FIB + SEM (Crossbeam 340)

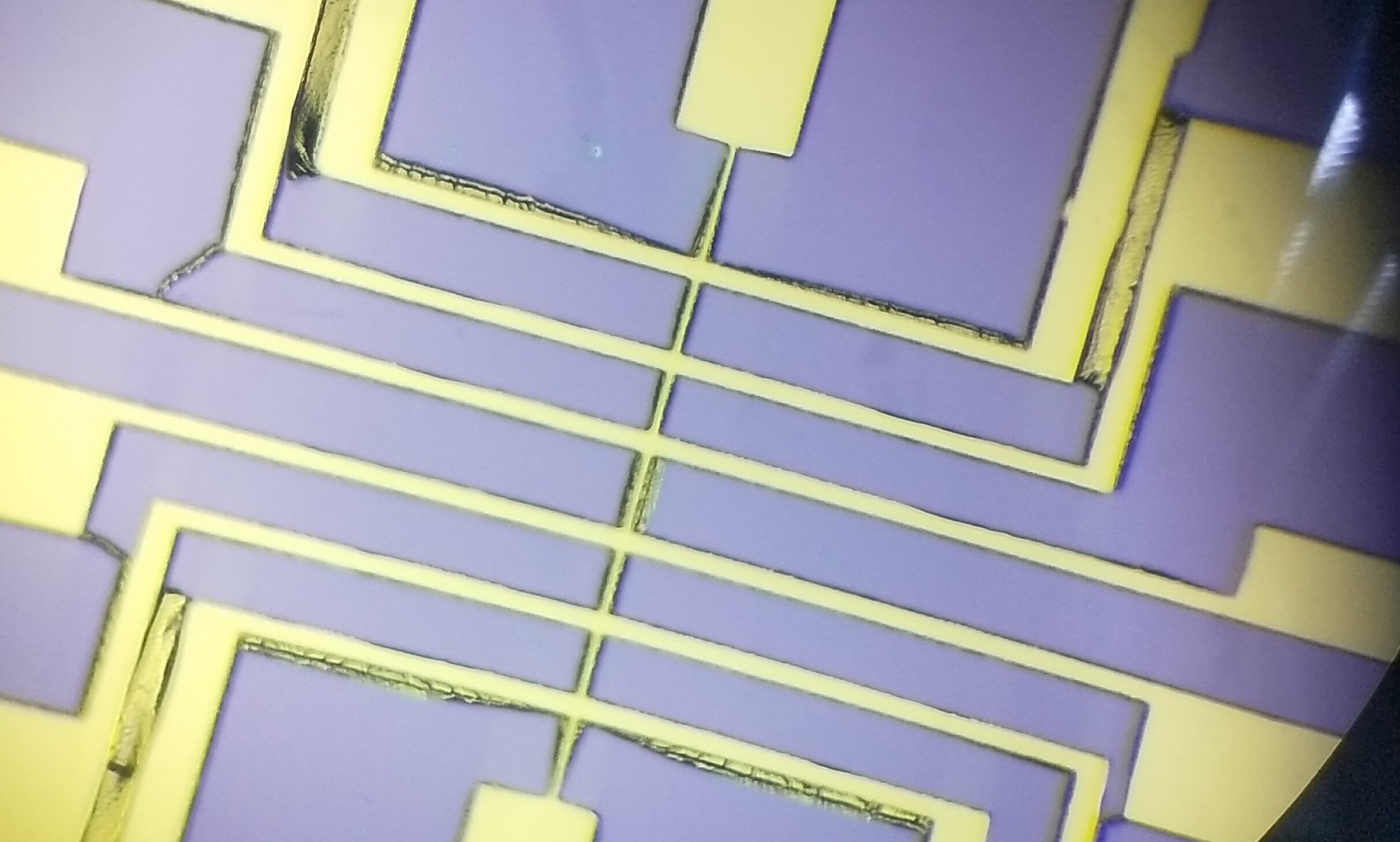

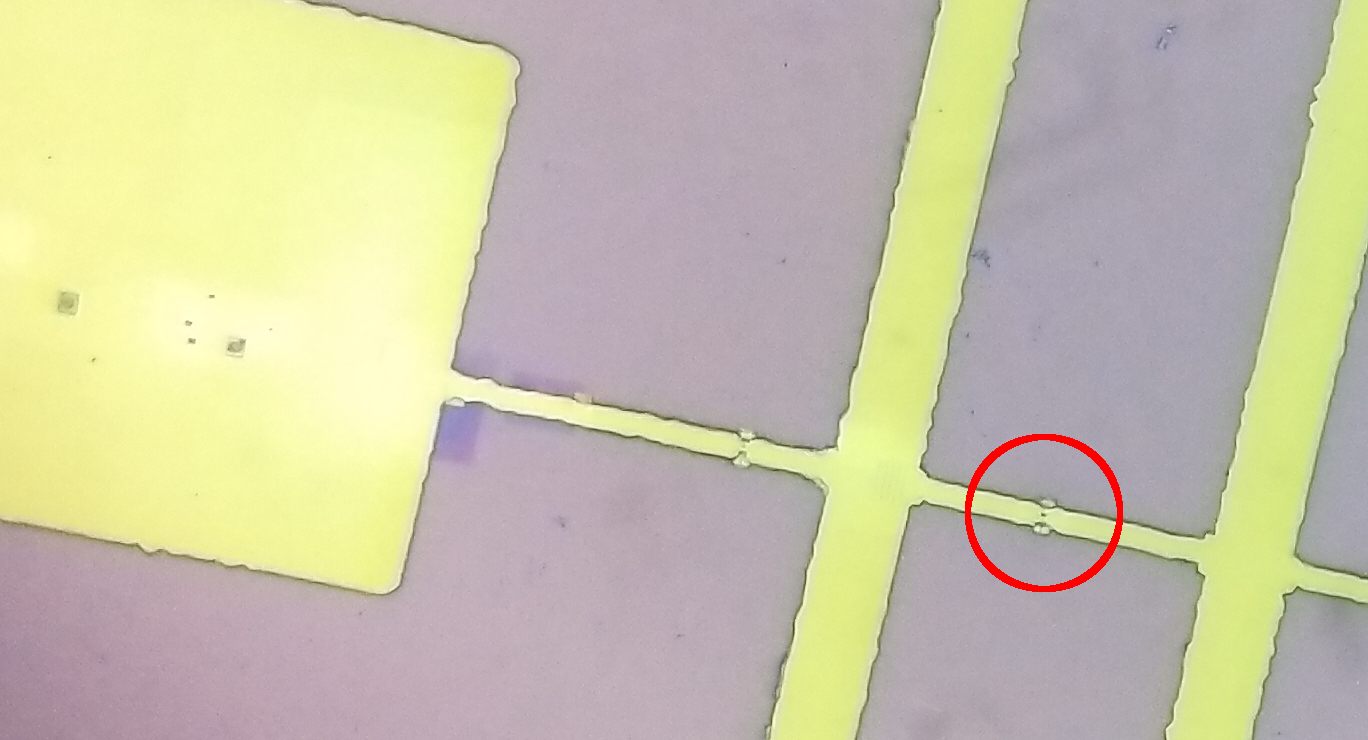

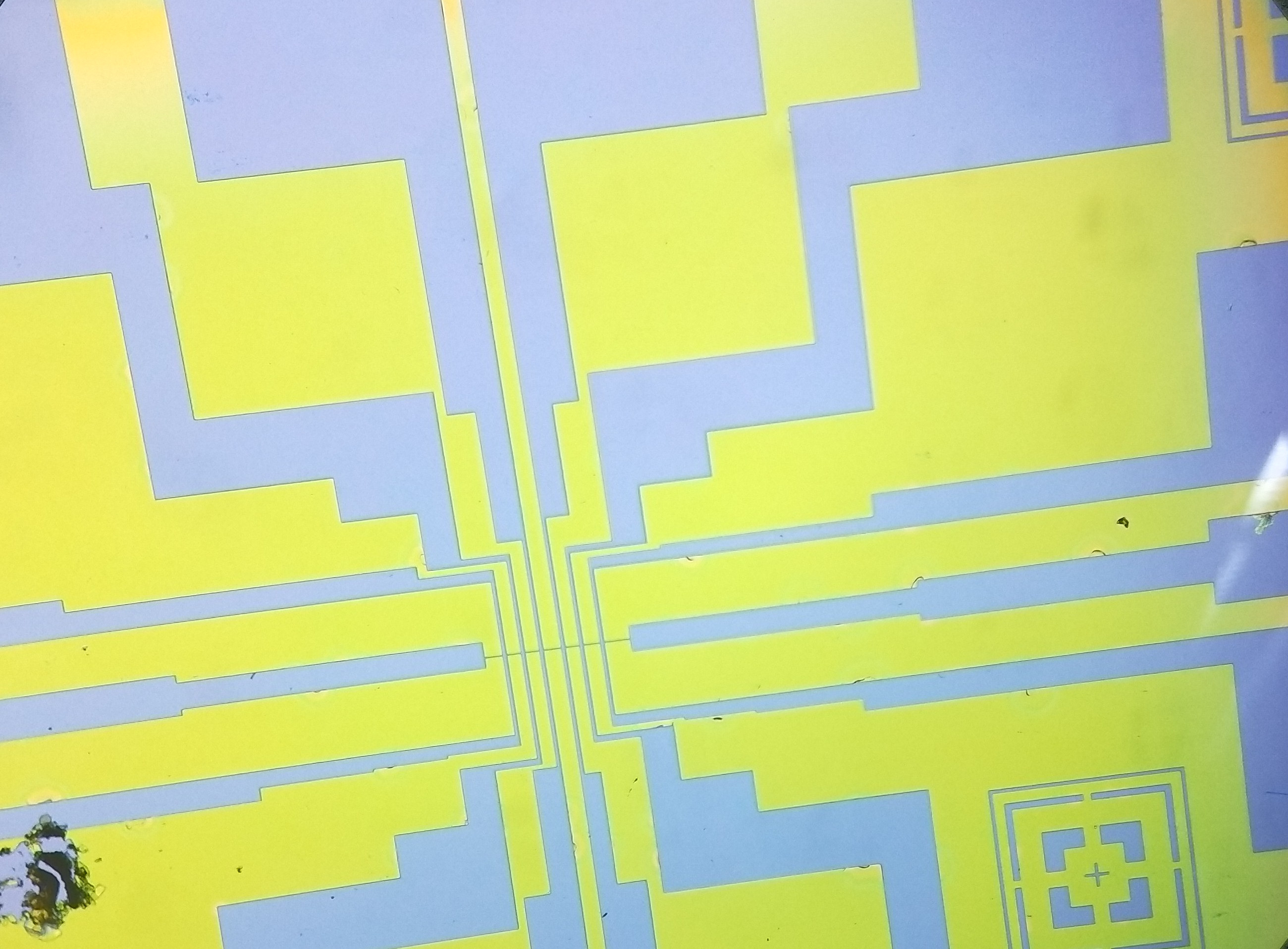

Stage PhotolithographyPhotolithography Tri-layer depositionTri-layer deposition Final SampleFinal Sample

Junction Geometries

Vertical Josephson Junction Planar Josephson Junction

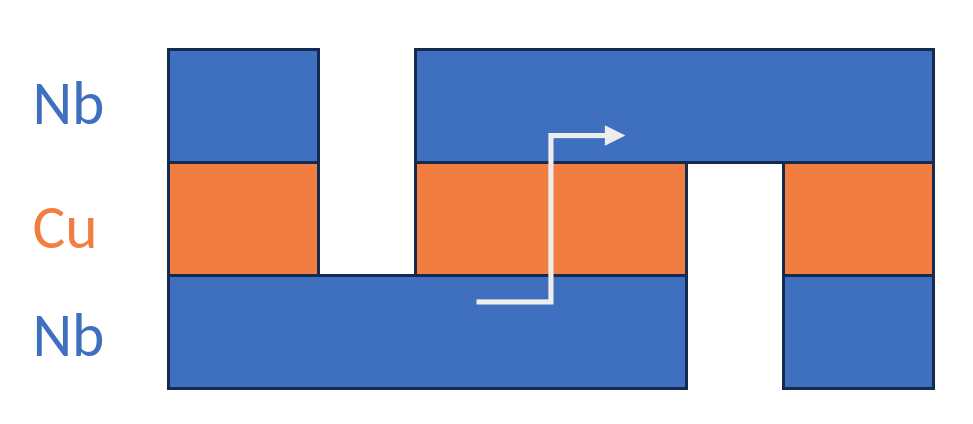

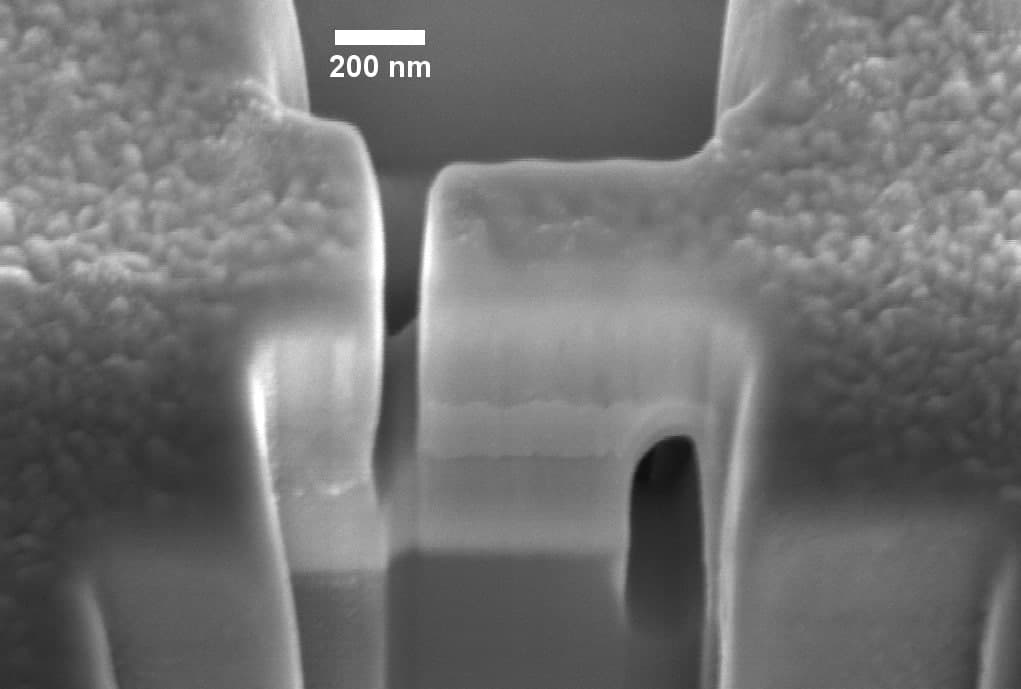

Vertical Josephson Junction Schematic Vertical Josephson. Junction Planar Josephson Junction Schematic Planar Josephson. Junction

Fabrication of device

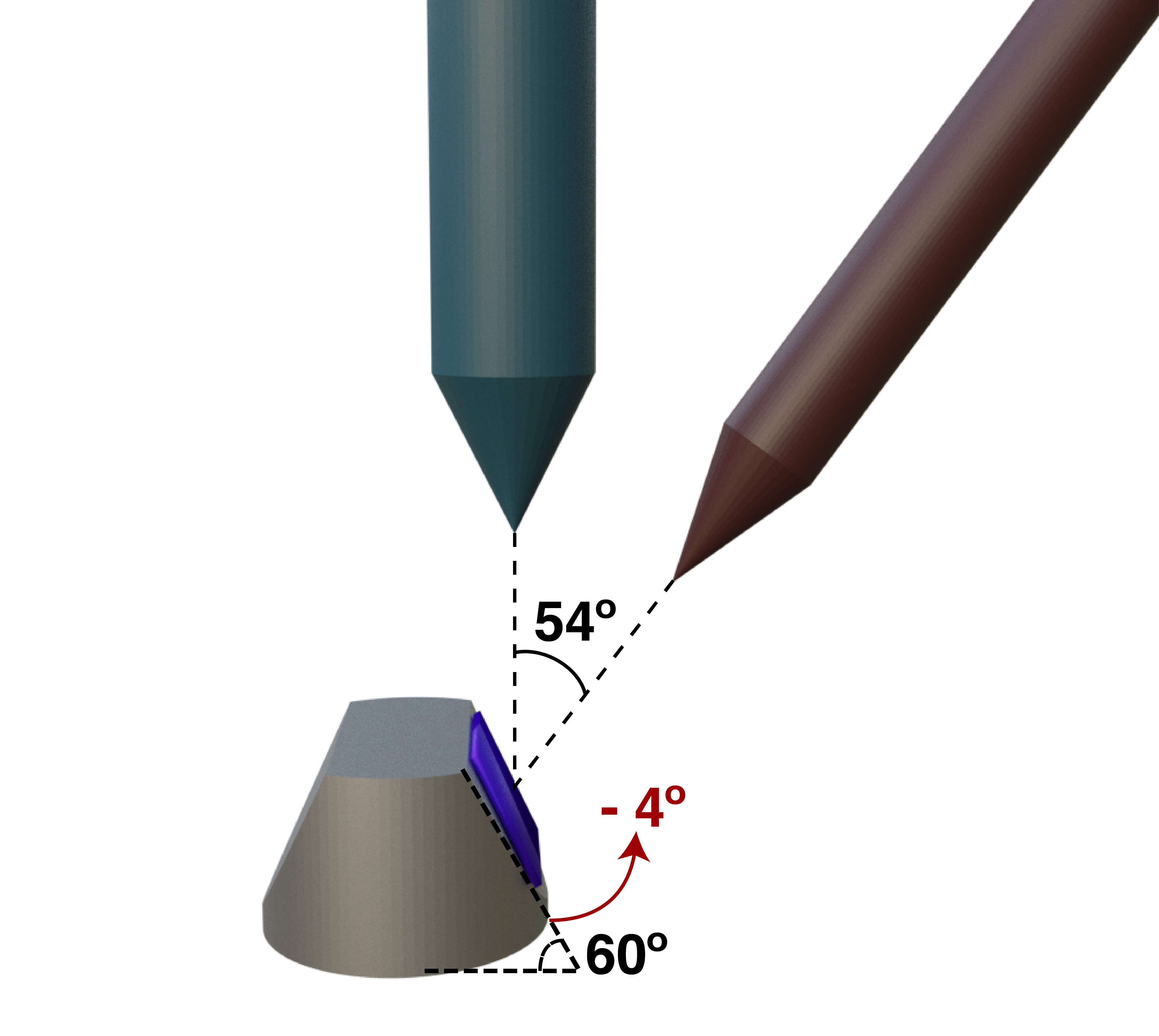

Schematic of an FIB Fabrication of device

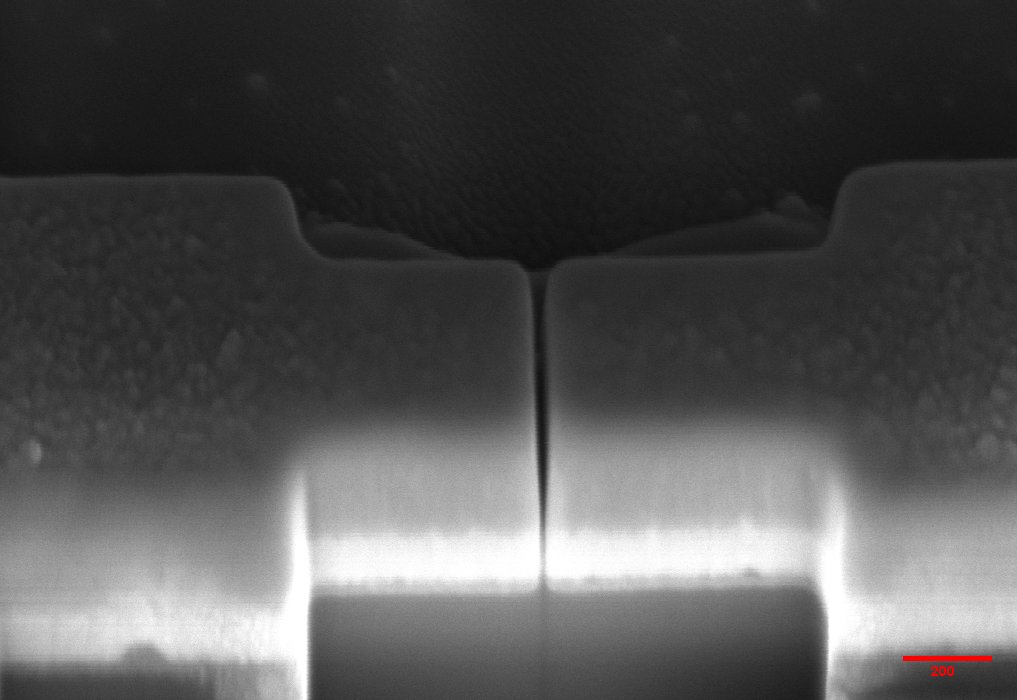

SEM Image of the device

(With false colours indicating the layers)

Transport measurement

Josephson Junction characteristics measurements

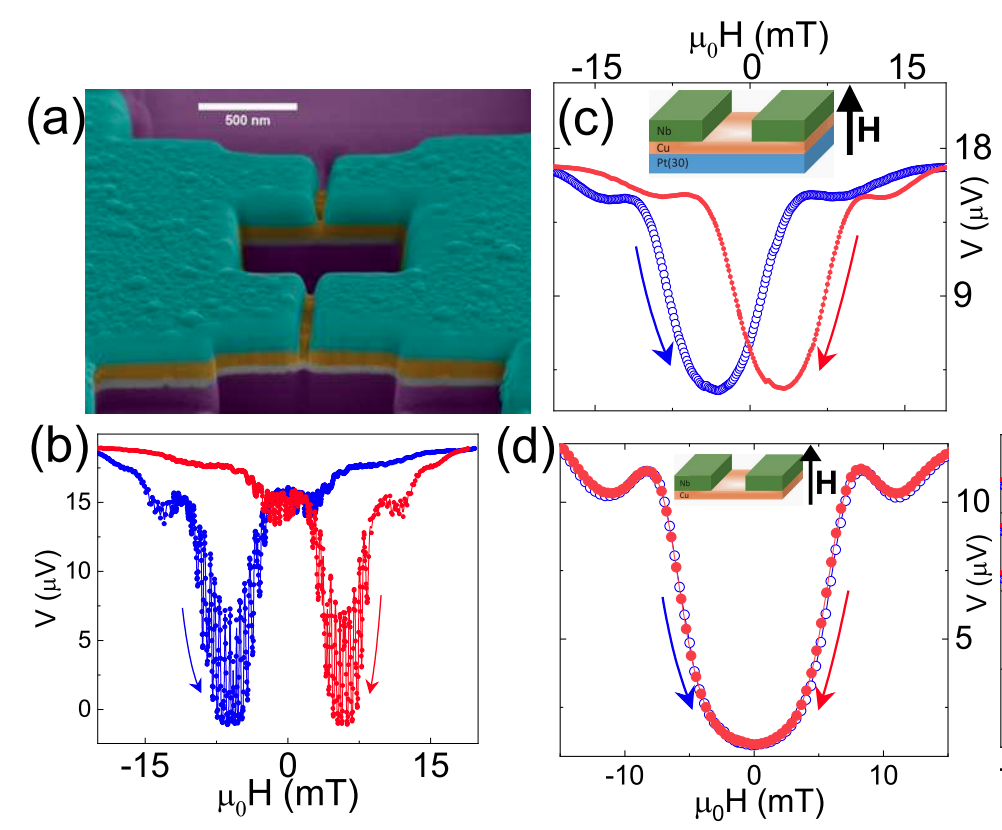

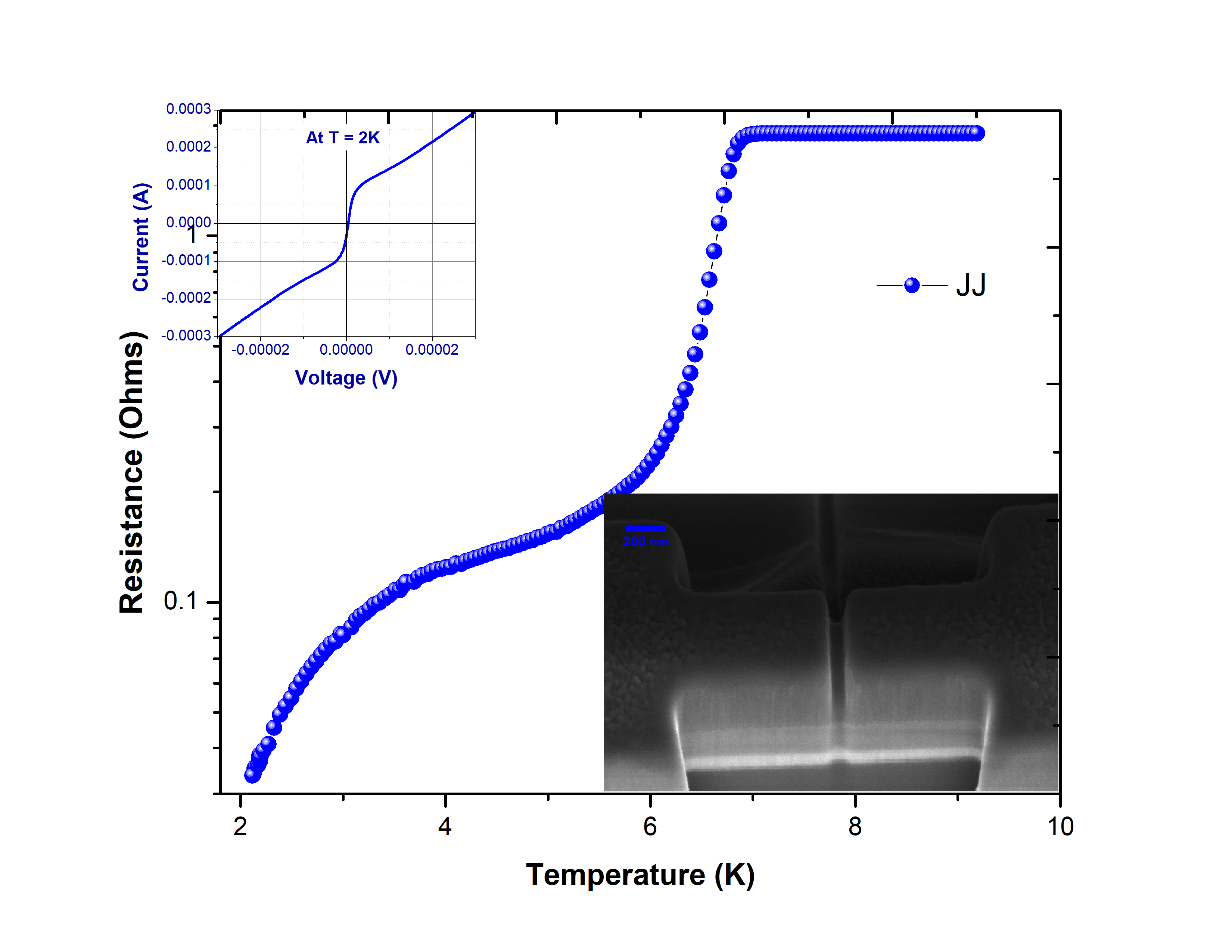

JJ RT measurementRT plot of a JJ showing transition of electrode and proximatisation of Cu. Inset shows IV of the same device. JJ VH measurementVH plot of the JJ showing the characteristic Fraunhofer Pattern.

Rashba-Edelstein effect in JJs and SQUIDs

JJ and SQUID with Rashba-Edelstein effect

Senapati, T., Karnad, A.K. & Senapati, K. Nat Com 14, 7415 (2023)

Simulation to verify $I_cH$ vs $VH$

Python Logo
  • Simulated using the ODE from RCSJ model.
  • Compared the $I_cH$ and $VH$ patterns (periodicity at $\frac{\Phi_J}{\Phi_0}$).

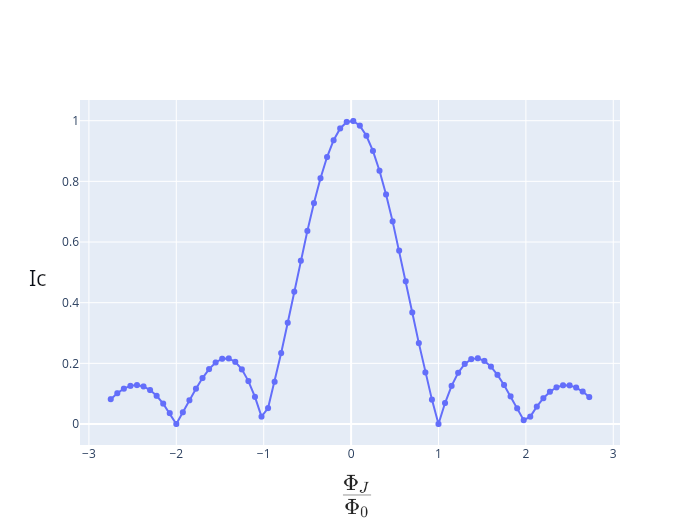

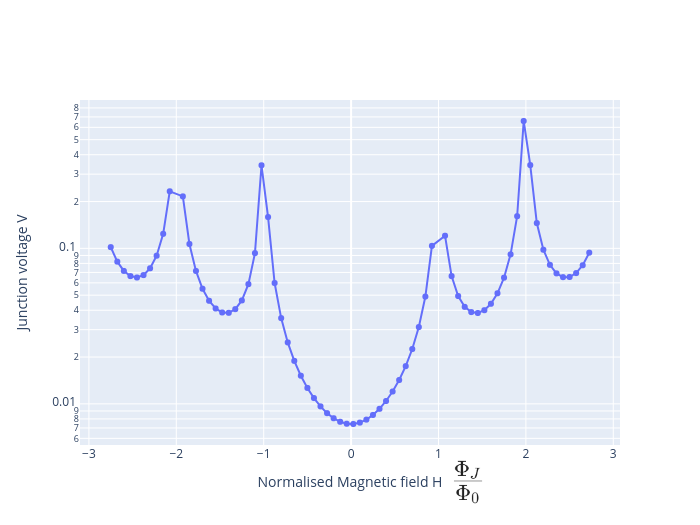

Normalised Plot of simulated IcHNormalised Plot of simulated $I_cH$ Normalised Plot of simulated VHNormalised Plot of simulated $VH$

Mechanism explanation in JJ

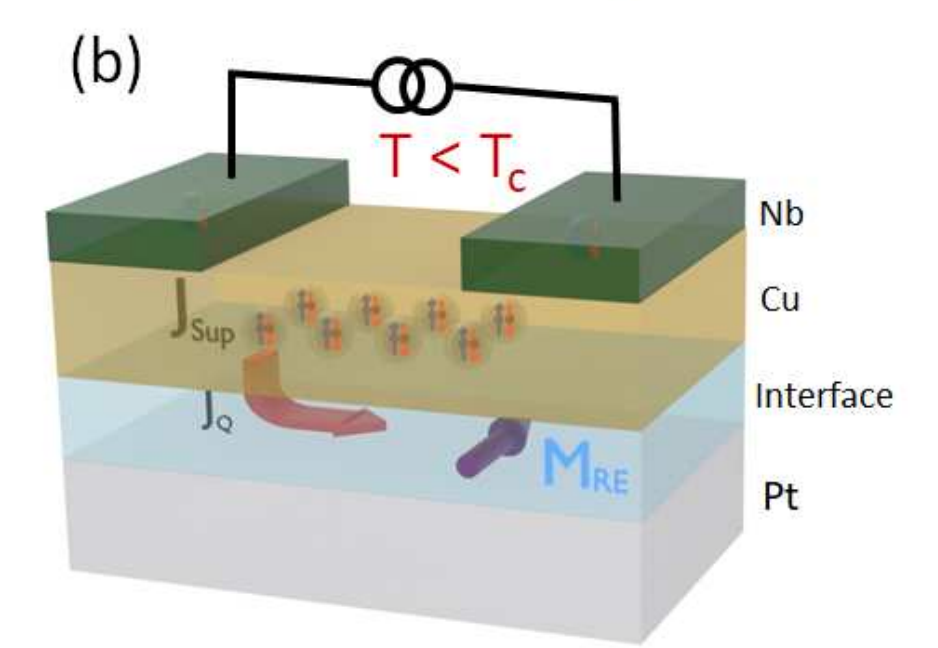

Physical effects in JJ above TcPhysical effects in JJ above $T_c$ Physical effects in JJ below TcPhysical effects in JJ below $T_c$

Senapati, T., Karnad, A.K. & Senapati, K. Nat Com 14, 7415 (2023)

Publication

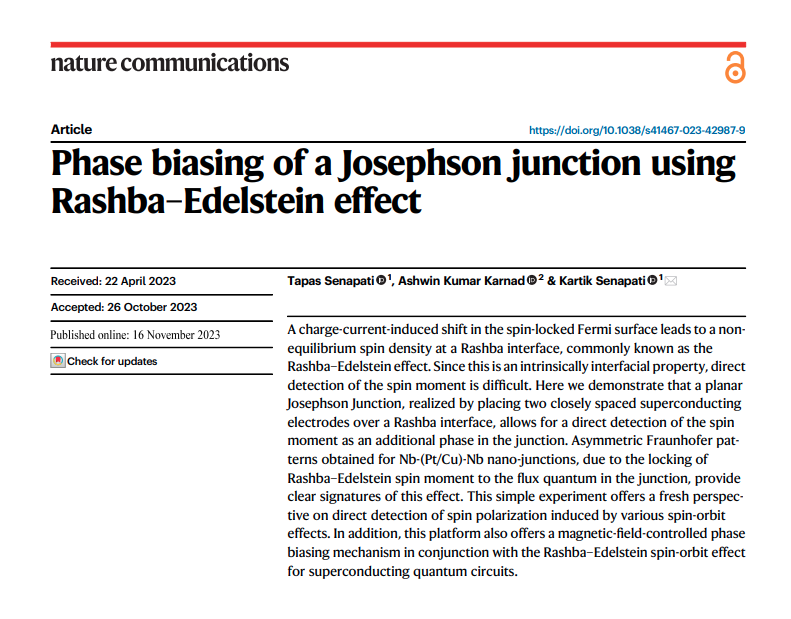

Nature Comications publication

Senapati, T., Karnad, A.K. & Senapati, K. Nat Com 14, 7415 (2023)

Conclusion

  • Direct detection of Rashba-Edelstein effect is possible using Josephson Junctions.
High phase sensitivity of the planar JJ offers the possibility of direct sensing of the accumulated spin density.
  • Phase difference $\delta$ of the junction can be tuned by the junction geometry.
  • Isolate RE from SHE as the system is superconducting

Auxilary work:

Control of scientific measurement with python

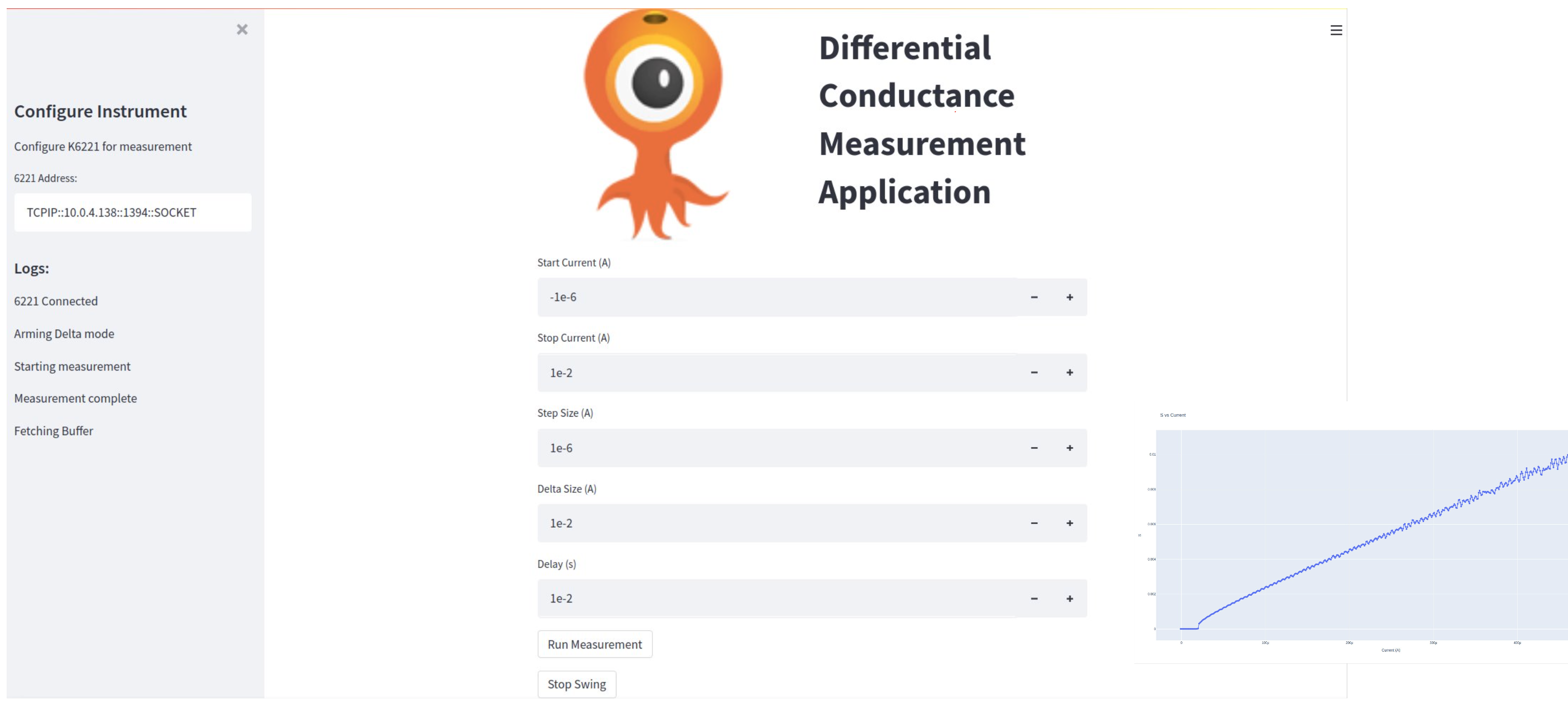

Python Logo py instrumentation

Cryostat Probe Design

Probe Design
NISER Logo
  • Under Prof. Kartik Senapati
  • Superconductivity Lab, NISER, India
  • Summer 2019

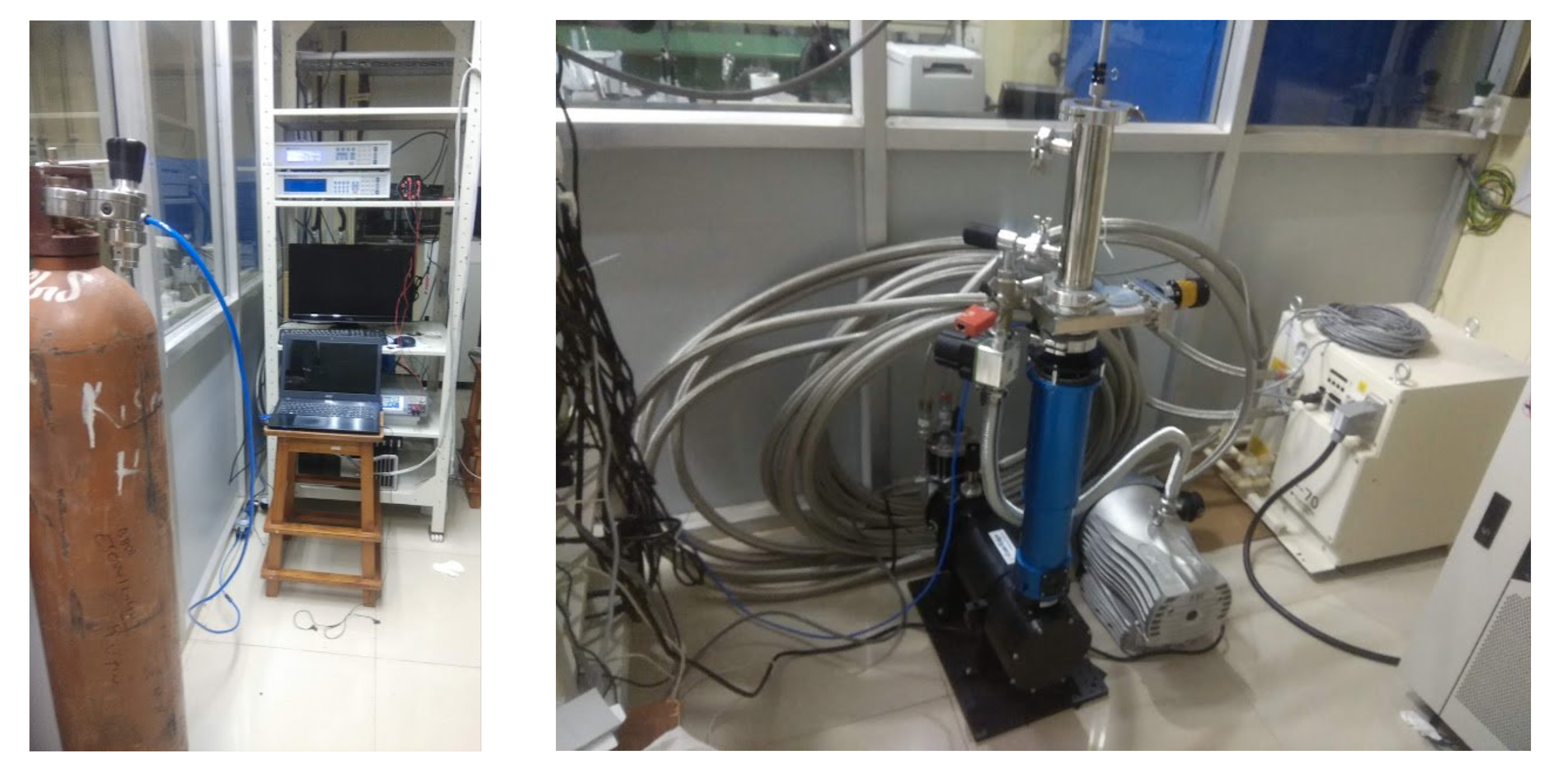

Cryostat arrangement

Arrangement of the cryostat in the lab

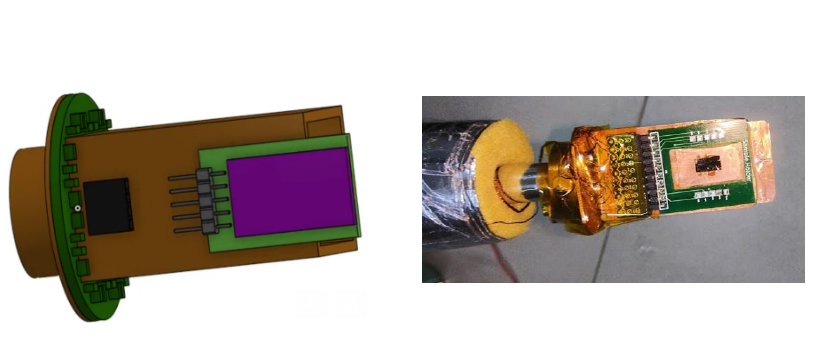

Existing probe design

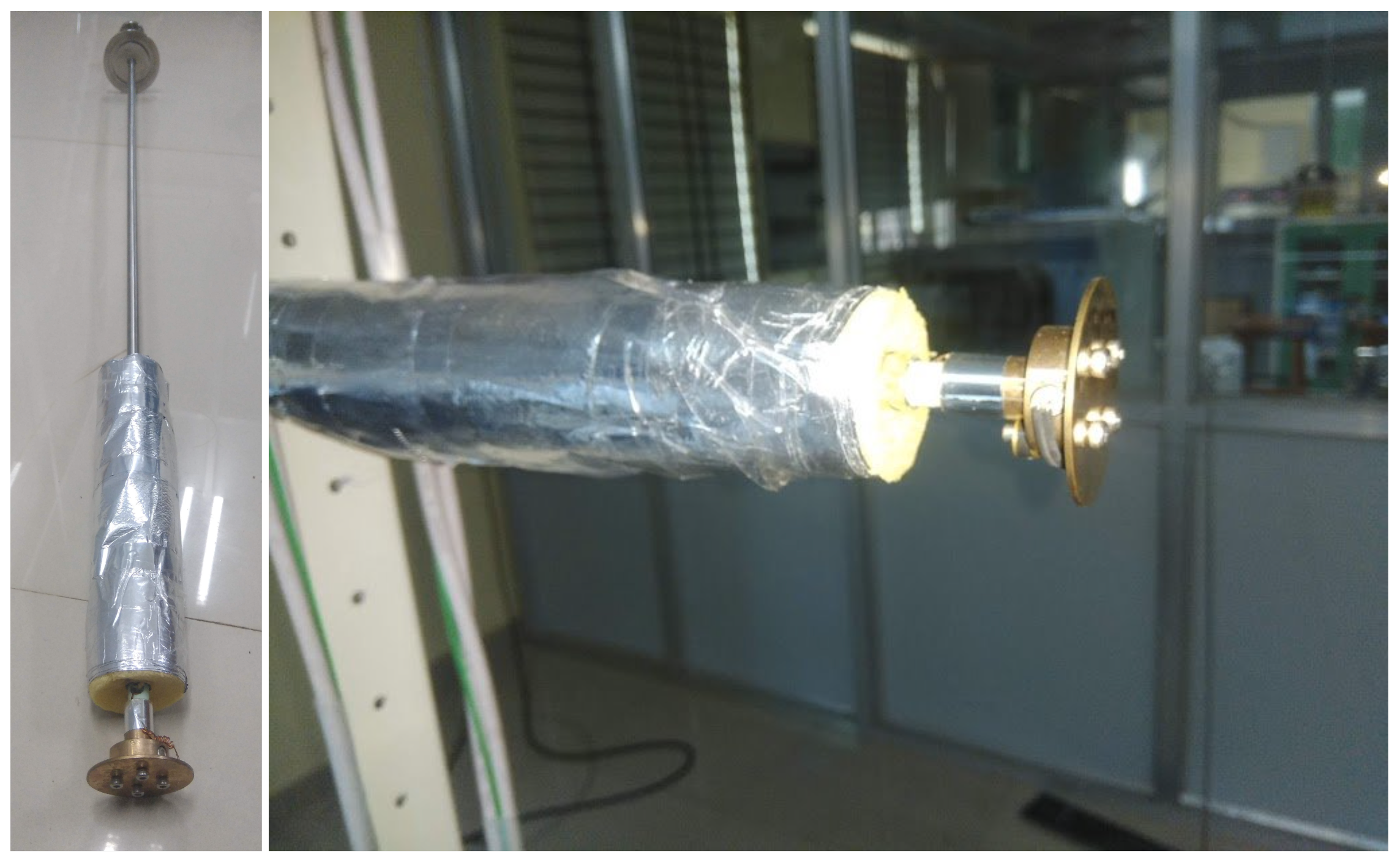

Existing probe design

CAD Model - I

Sample holder for non magnetic measurements

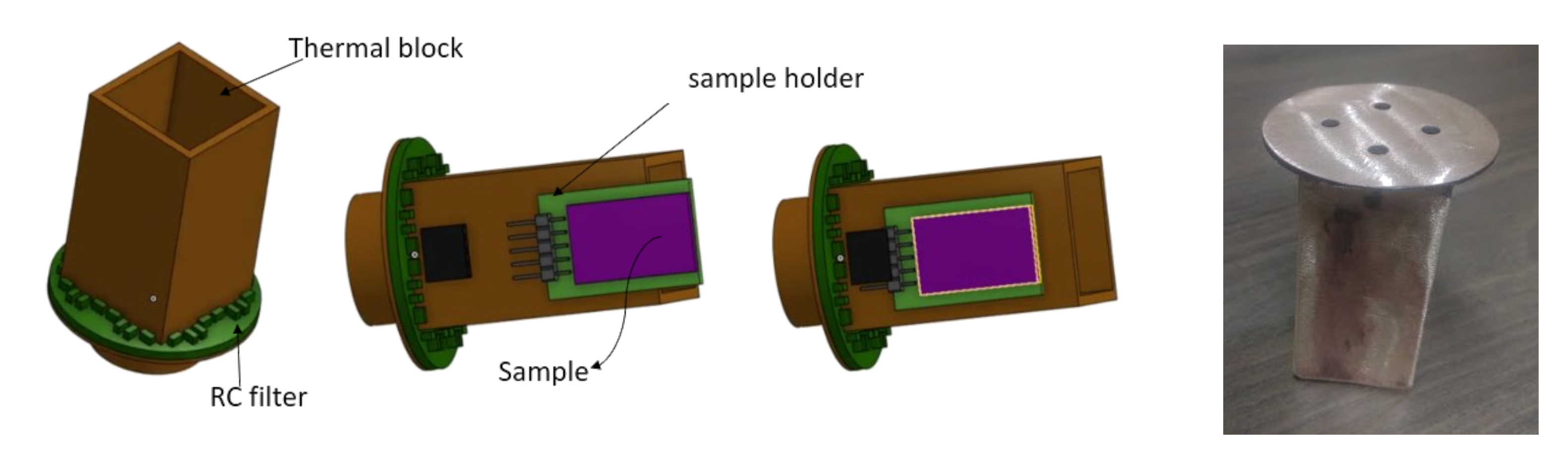

Fusion 360 Logo CAD Model for non magnetic model

CAD Model - II

Sample holder for magnetic measurements

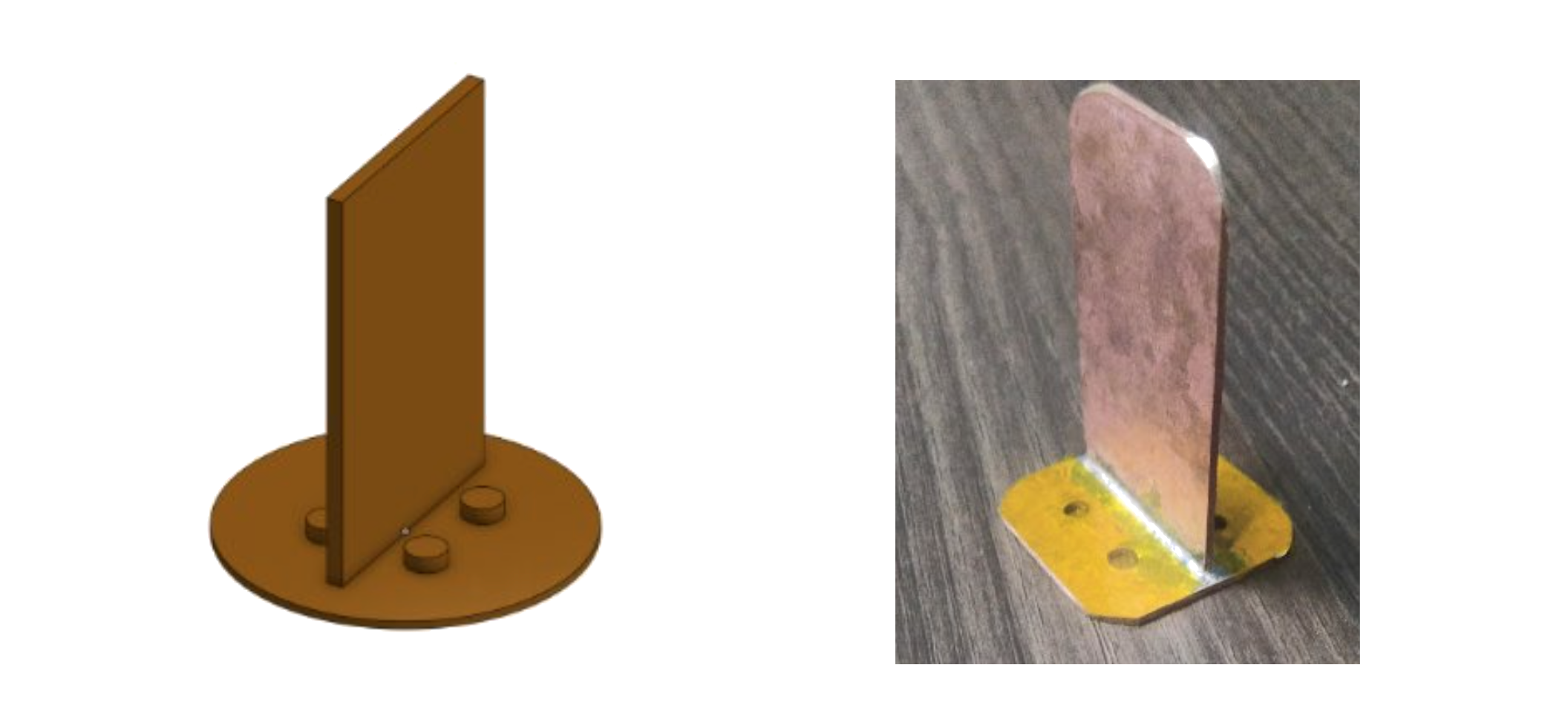

Fusion 360 Logo CAD Model for  magnetic model

RC Filter design (low pass)

ltspice $$ f_c = \frac{1}{2\pi RC}$$

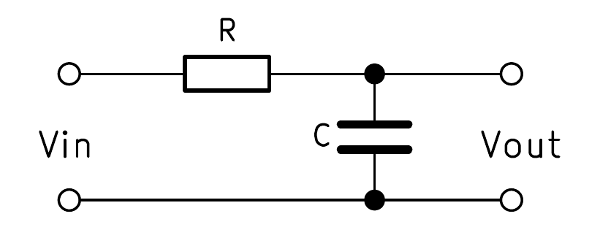

RC Filter cktRC filter circuit used RC Filter cktMeasured Bode plot (strength vs frequency)

PCB Design


Eagle cad Logo

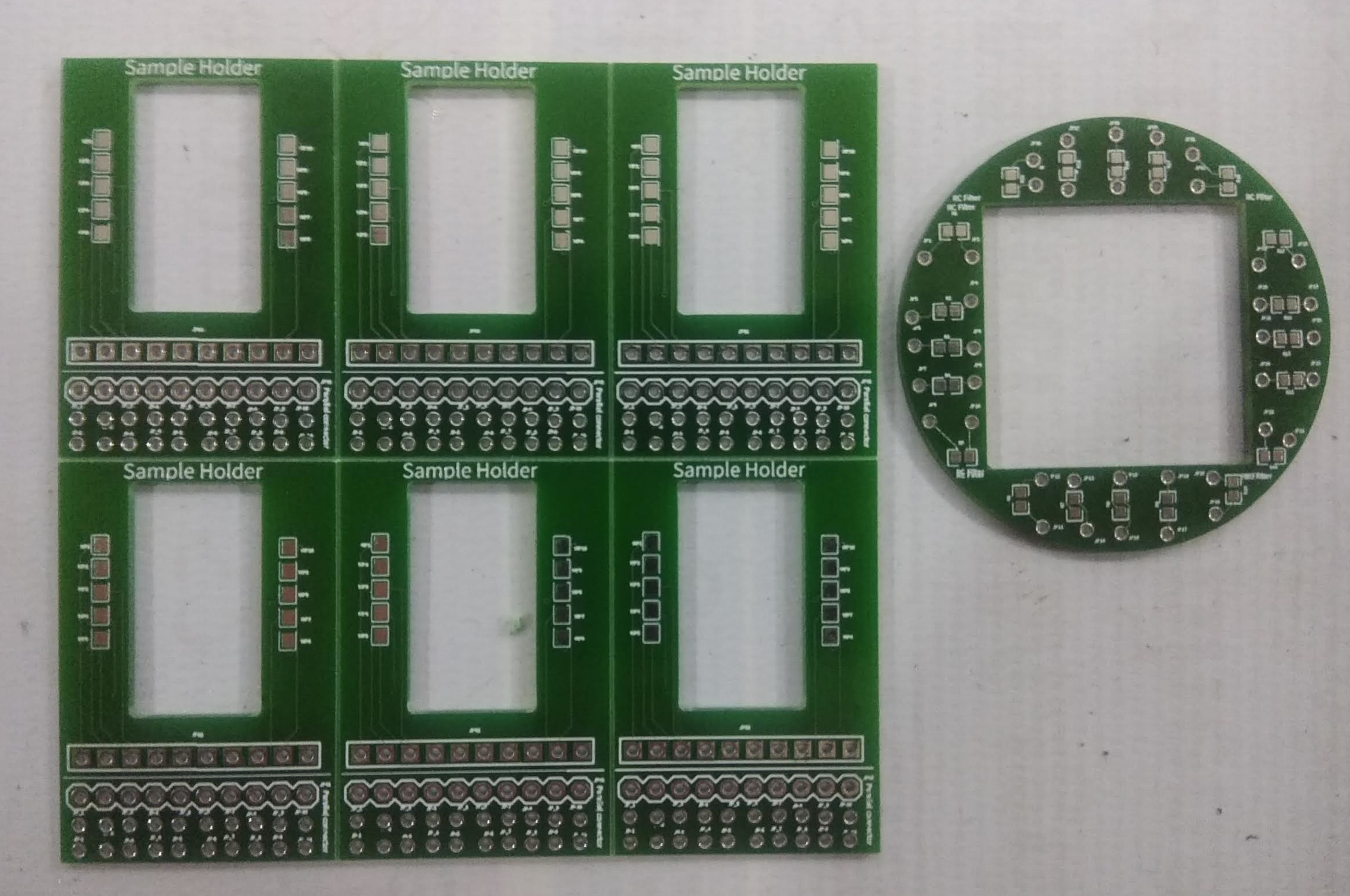

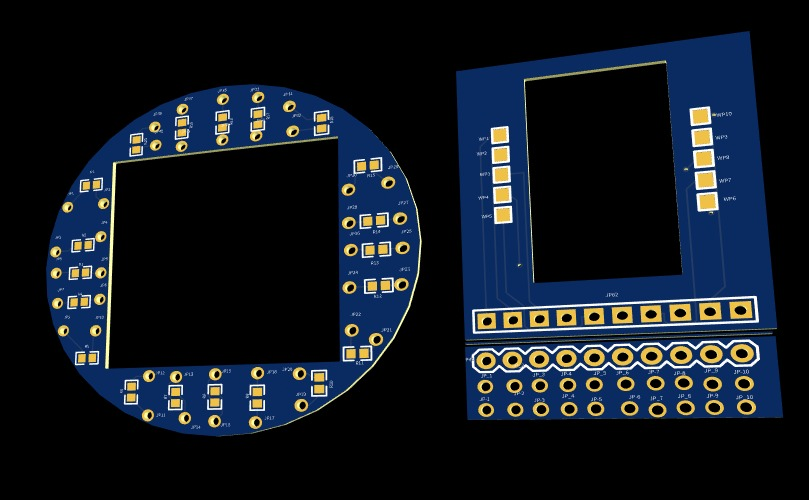

PCB DesignPCB Design PCB fabricatedFabricated PCB
Labivew Logo

Software for data acquisition

Labview setup

Sample measurement

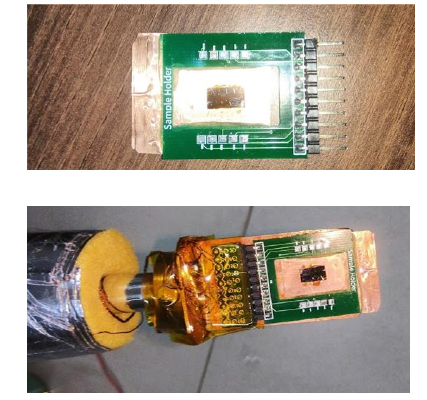

RC Filter cktMeasured sample RC Filter cktMeasured RT

Simulation of IR seeker missiles and its counter measure

Image of a Reticle based Missile Matlab
DRDO Logo
  • Defense Avionics Research Establishment
  • DRDO, Bangalore, India.
  • Summer 2019

Design and Simulation of Battery Management System Algorithms for Electric Vehicle Applications

Image of a Reticle based Missile
Kaynes Logo
  • Kaynes Technology India Pvt Limited, Mysore, India
  • Summer 2020

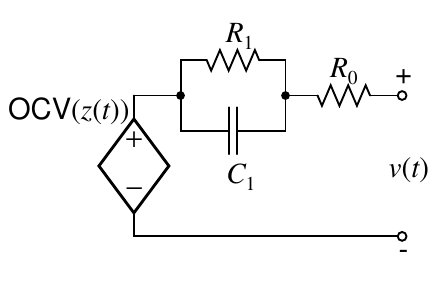

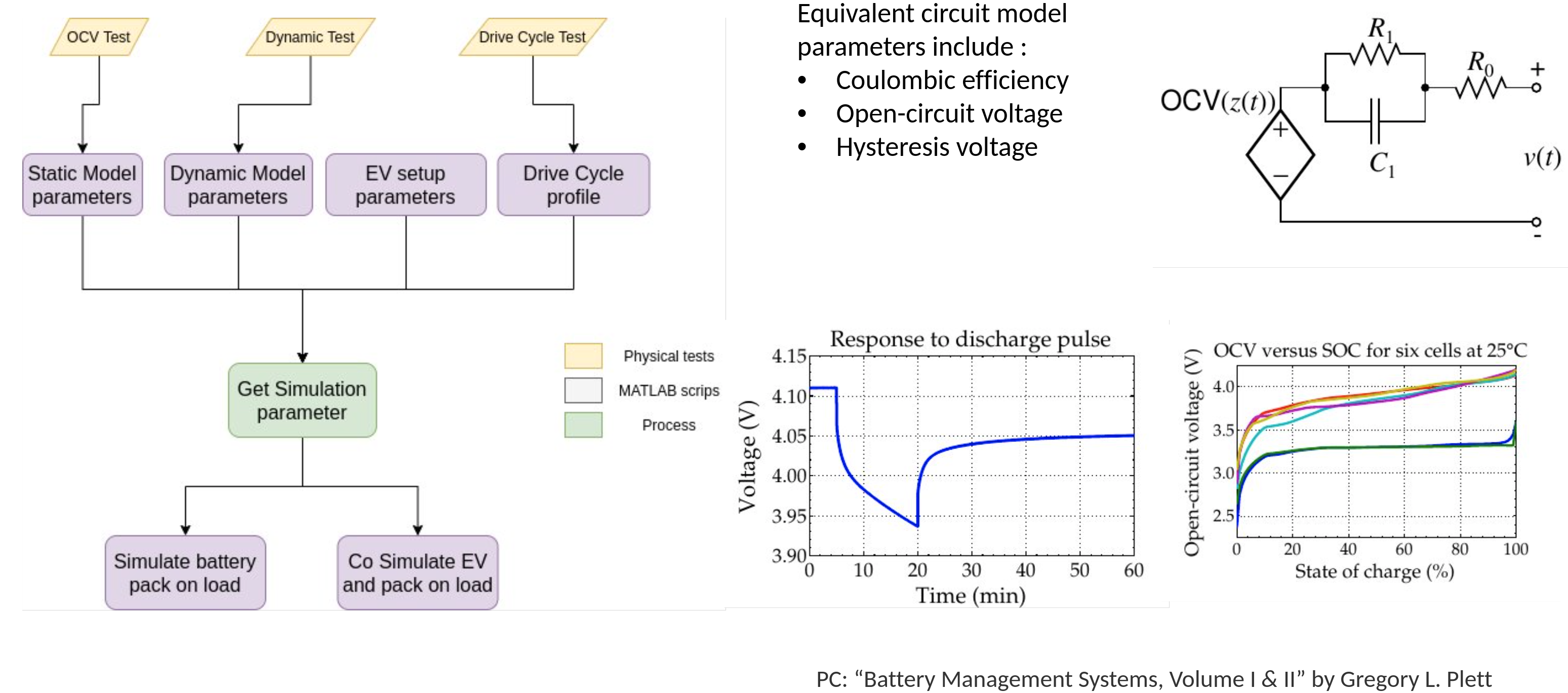

Modeling of an EV Li-ion battery and drive parameters

Matlab CAD Model for  magnetic model

Work as a Research Software Engineer

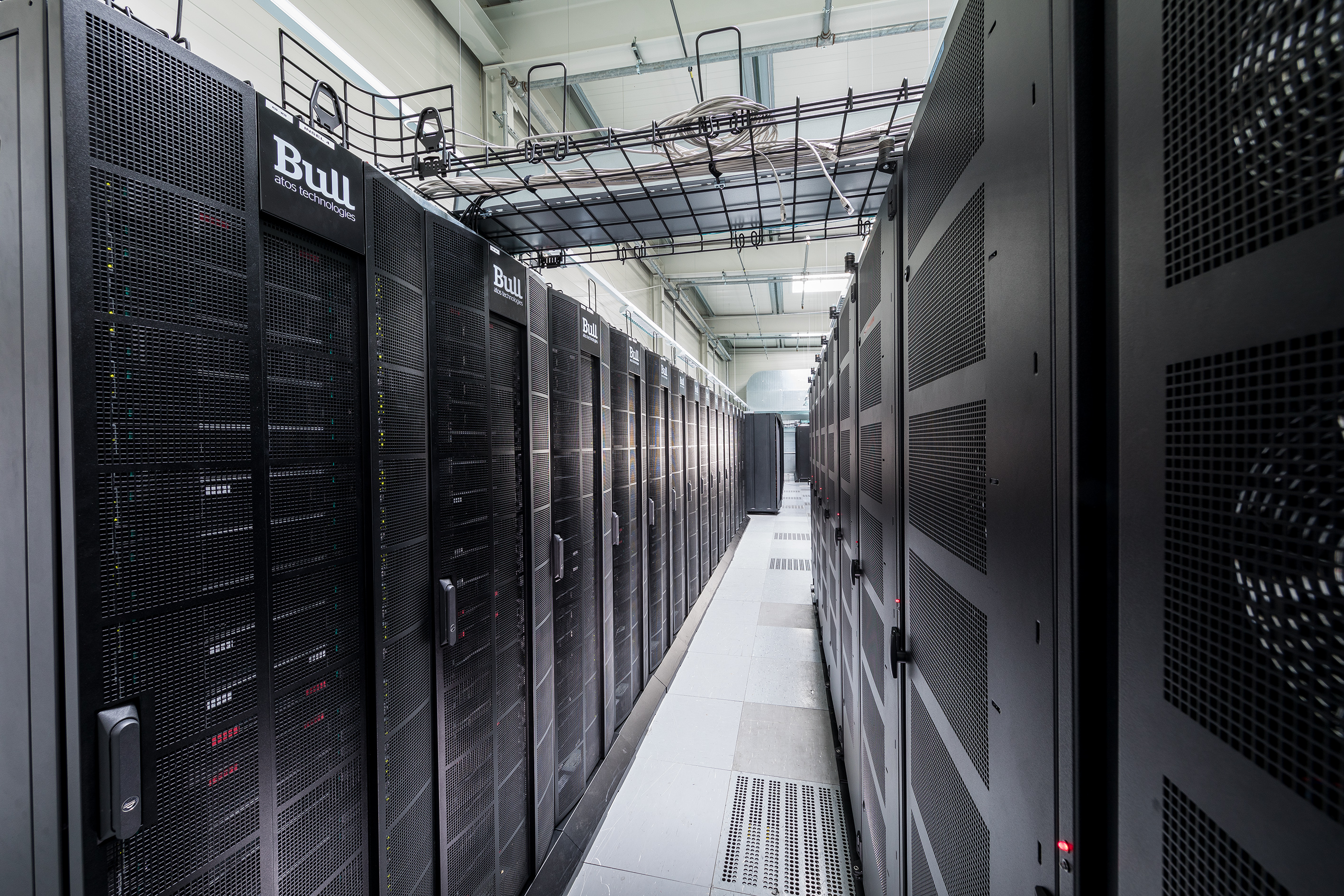

MPCDF Server room

Server room at MPCDF PC: Prof. Hans Fangohr

MPSD Logo
  • Prof. Hans Fangohr
  • Max Planck Institute MPSD, Hamburg
  • 2022 onwards

Postopus : POST processing of OctoPUS data

Python Logo Post processing of Benzene DFT calculation
PostopusPost processing of Benzene DFT calculation

Postopus : POST processing of OctoPUS data

Python Logo Post processing of Benzene DFT calculation

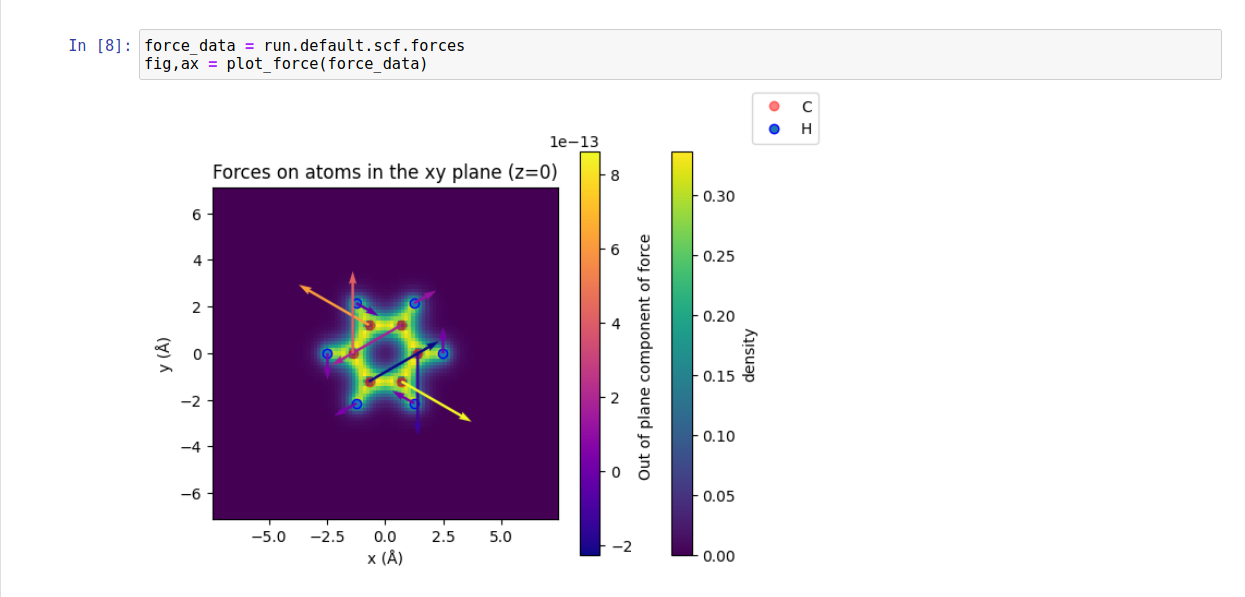

PostopusPlot forces on Benzene electron density

Postopus : POST processing of OctoPUS data

Python Logo Post processing of Benzene DFT calculation
Postopus
Slice of Benzene electron density

ML on micromagnetic configuration

Python Logo
MM CFG

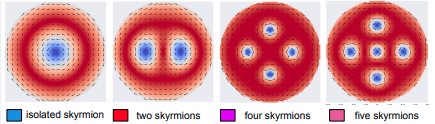

The energy density difference between identified equilibrium states and the corresponding ground state.
[Beg, M., Carey, R., Wang, W. et al. Sci Rep 5, 17137 (2015).]
Postopus Example magnetic configurations
PC: Swapneel

My interest in functional metal oxides

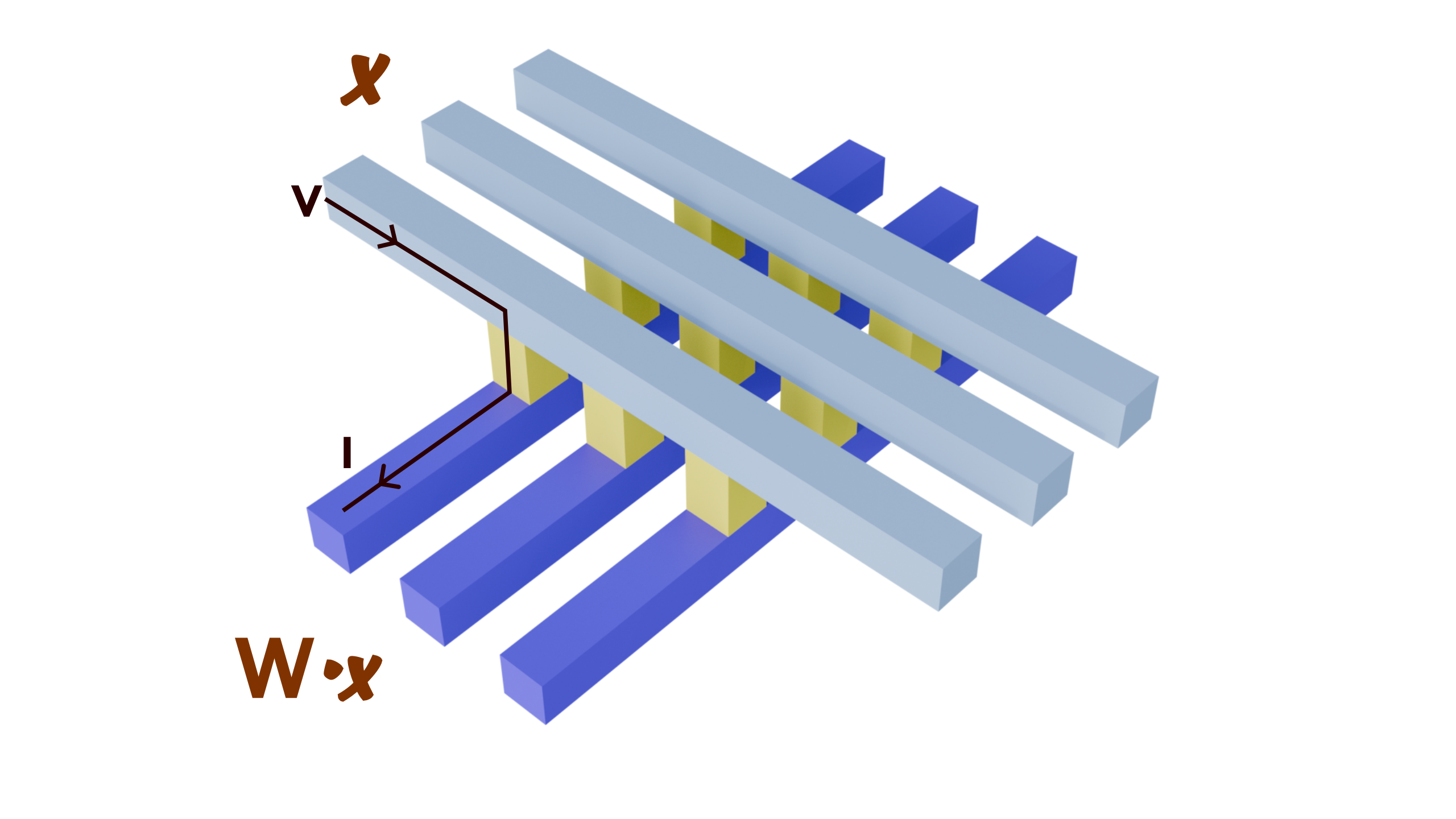

Memristive crossbarHZO Memristive crossbar array for vector multiplication applications PCB fabricated
A physical reservoir computing scheme uses a magnetic reservoir or ferroelectric reservoir (here made from domain walls) (center) for clustering.
[inspired from Karin Everschor-Sitte et. al. arXiv (2023)]
